Home Automation

Work, work, work.

Ljussensor
Light sensor box - 1 Analog TSL252R Dallas 1-wire

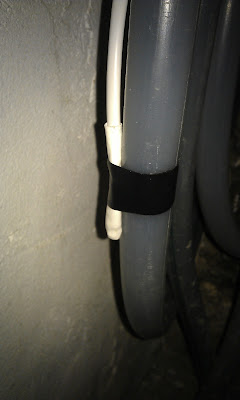

Temperature sensor mounting underfloor heating

4 DS18S20 Dallas 1-Wire temperature sensors mounted parallel with 1 RJ-12



Raspberry PI v2 with 4GB SD Card.

Tempsensorer
RJ-12 Splitter in 1-wire network.

Tempsensorer
DS18S20 Tempsensors at the heating pump, isolated with foil, foam and tape.

Kamstrup eletricity meter and main switch for the heating pump.
